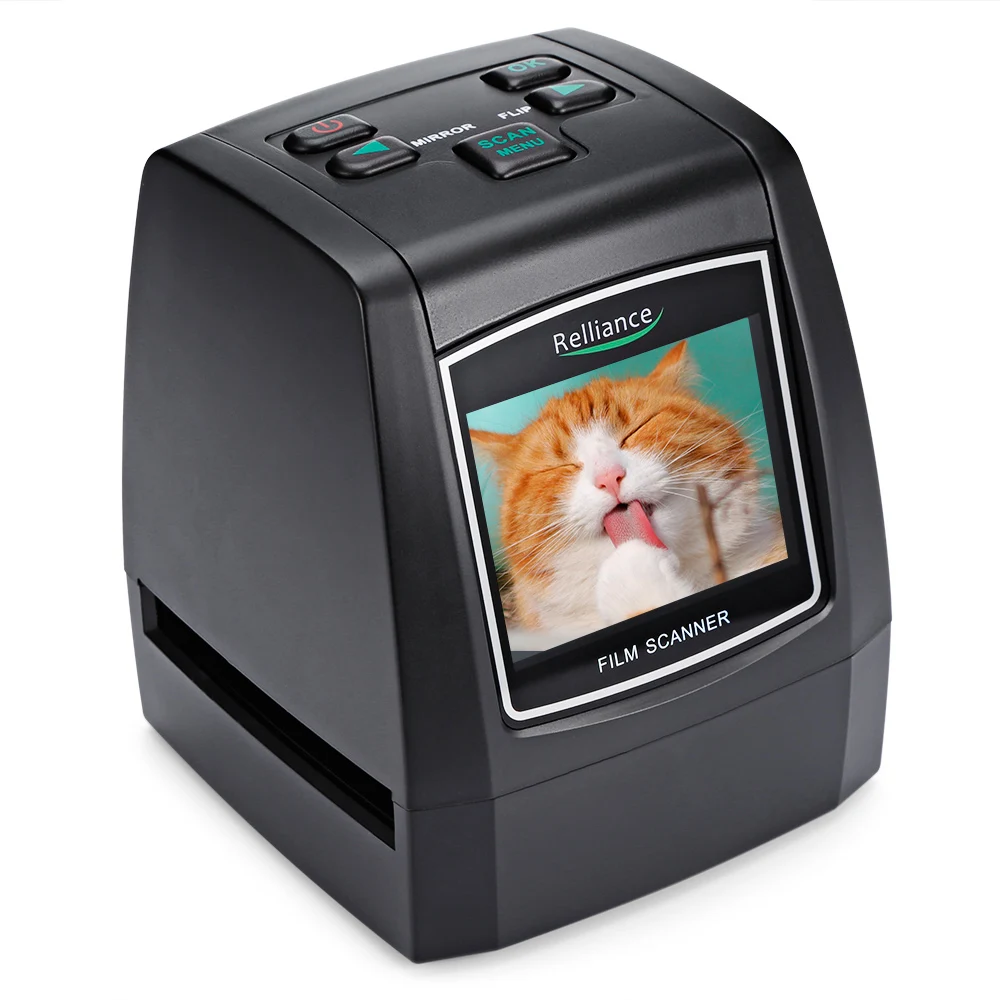

Сканер пленки Relliance EC018 конвертер слайдов с высоким разрешением 135 мм/126 мм/110 мм/8

Опора EC018 пленка сканер с высоким разрешением пленка слайд-сканер CMOS 35 мм, 110/135/126KPK/Супер 8 фильмов USB 2,4 на тонкопленочных транзисторах на тонкоплёночных транзисторах ЖК-дисплей черный

Описание:

Хочу сохранить и воспроизвести старые фотографии, этот сканер пленки предназначен для преобразования пленки 35 мм, 110/135/126KPK/Super 8, слайдов и негатива в цифровой формат JPEG. Также нет необходимости подключать компьютер или программное обеспечение. Так легко, почему бы не начать прямо сейчас?

Основные Особенности:
-Легкий и компактный размер, удобно брать в любом месте
-Встроенная интерполяция программного обеспечения, возможность регулировки и улучшения качества изображения до 22 МП
-Высокая скорость, преобразование серии типов пленки в цифровой формат JPEG за считанные секунды с 14/22 мегапикселей (интерполяция)
-Простота в использовании, сохранение фотографий непосредственно на sd-карте, без компьютера или программного обеспечения
-2,4 на тонкопленочных транзисторах на тонкоплёночных транзисторах цвет ЖК-дисплей дисплей, подключаться к ТВ видео вход с поставляется ТВ кабель
-Поддержка нескольких языков, английский, французский, немецкий, итальянский и китайский


Параметры:
Интерфейс: USB 2,0
Датчик изображения: 14/22 мегапикселей, CMOS
Сенсор ЖК-дисплей: 2,4 дюймов ЖК-дисплей дисплей
Контроль воздействия: Автоматическое/ручное
Баланс белого: автоматический
Разрешение: 14/22 МП (интерполяция)
Поддерживаемые типы пленок: 135 пленок (36×24 мм), 126KPK пленка (27×27 мм), 110 пленок (17×13 мм), монохромная пленка super 8 (4,01×5,79 мм)
Эффект слайдов: слайды, негативы
Формат файлов: Изображение/JPEG
Тип ТВ-выхода: NTSC/PAL
Память: 128 Мб
Емкость sd-карты (макс.): 32 ГБ
Поддерживаемая система: Windows XP/Vista/7/8/10, Mac 10.7.3 и выше
Язык: английский, французский, немецкий, итальянский, испанский, традиционный китайский, упрощенный китайский, японский

Вес продукта:0,2540 кг

Посылка Вес:0,5700 кг

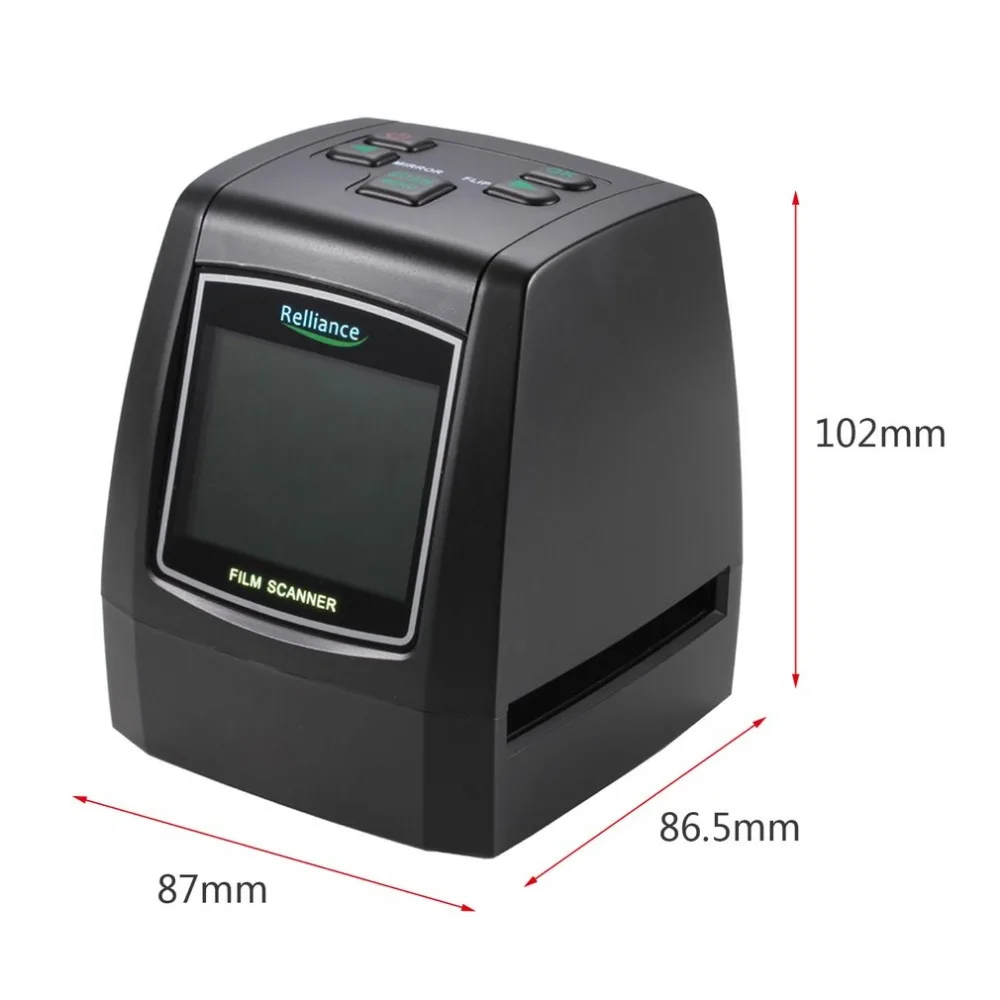

Посылка с размером (Д x Ш x В):13,50×10,30×15,50 см/5,31×4,06×6,1 Дюйм (ов)

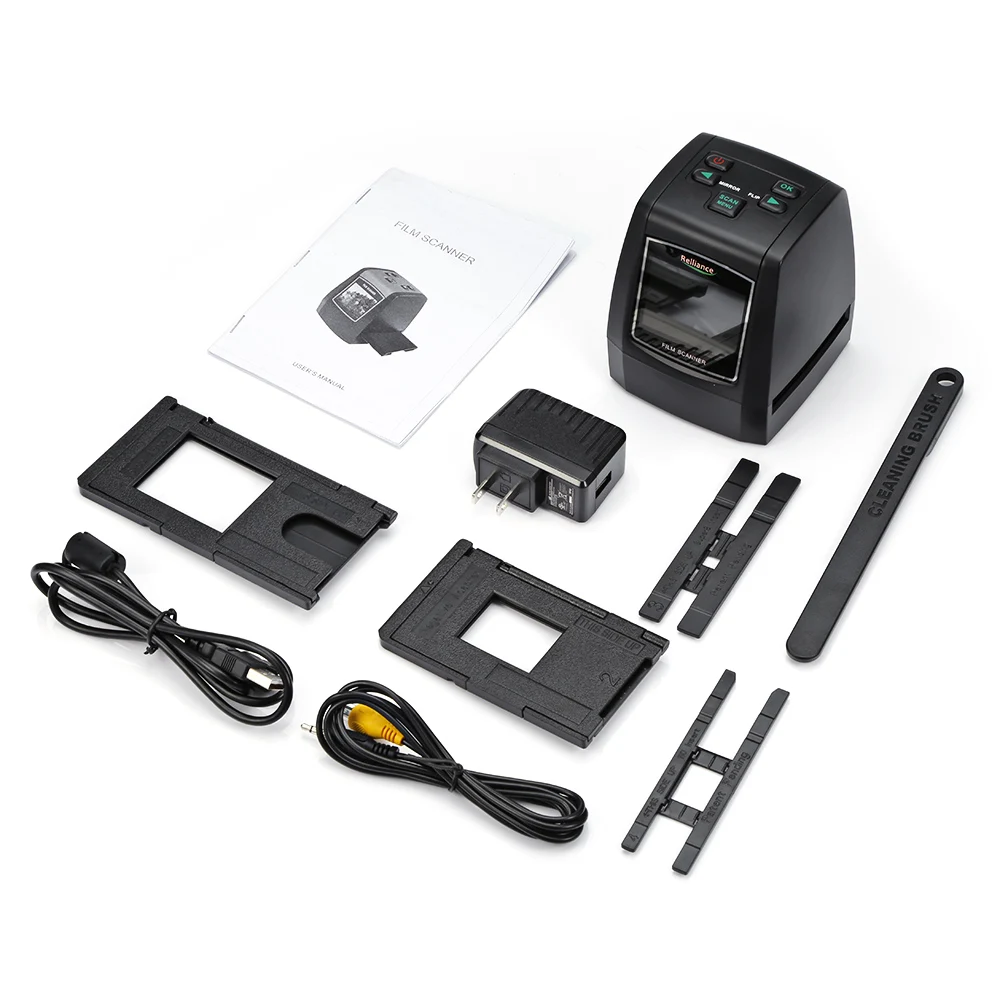

Посылка в комплект входит:1 х цифровой сканер, 1 х отрицательный адаптер переменного тока, 1 х слайд адаптер переменного тока, 1×110 вставки, 1 x Супер 8 вставка, 1 х usb-кабель, 1 x Мощность адаптер переменного тока, 1 x ТВ-кабель, 1 x Чистящая Щетка, 1 x Руководство пользователя (на английском языке)
